Product Description
The UM3488EEPA is a ±8kV electrostatic discharge (ESD)-protected, high-speed transceiver for RS-422 communication that contains one driver and one receiver. The device features fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance). The UM3488EEPA allows transmit speeds up to 10Mbps. The device features enhanced ESD protection. All transmitter outputs and receiver inputs are protected to ±8kV using the Human Body Model.
The device has a 1/8-unit-load receiver input impedance that allows up to 256 transceivers on the bus. The UM3488EEPA is intended for full-duplex communications.
Features
- ESD Protection for RS-422 I/O Pins
±8kV, Human Body Model
- True Fail-Safe Receiver while Maintaining EIA/TIA-422 Compatibility
- Maximum Data Rate up to 10Mbps
- Error-Free Data Transmission
- Allow Up to 256 Transceivers on the Bus
Typical Application Circuit

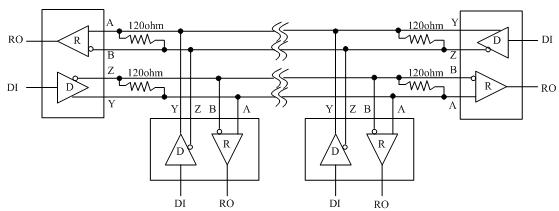

 Figure 1: Typical Full-Duplex RS-422 Network Applications
- RS-422 Communications
- Level Translators
- Transceivers for EMI-Sensitive Applications
- Industrial-Control Local Area Networks
