Key Specifications

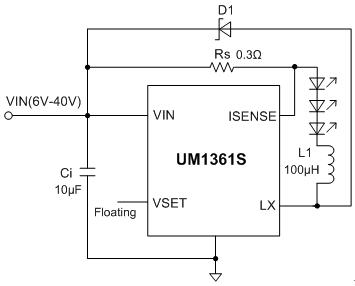

The UM1361S is a PWM step-down converter with internal power switch, designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage. The device operates from an input supply between 6V and 40V and employs hysteretic control with a high side current sense resistor to set the constant output current up to 1A. The device is well suited for applications requiring a wide input range. The high side current sensing and an integrated current sensing circuitry minimize the number of external components while delivering an accurate average output current. Depending upon supply voltage and external components, this device can provide up to 30 watts of output power.

Output current can be adjusted below the set value, by applying an external control signal to the VSET pin. The VSET pin will accept either a DC voltage or a PWM waveform. Dedicated pulse width modulation (PWM) input enables pulsed LED dimming over a wide range of brightness levels. A hysteretic control method ensures excellent input supply rejection and fast response during load transients and PWM dimming.

Applying a voltage of 0.2V or lower to the VSET pin turns the output off and switches the device into a low current standby state.

The UM1361S comes in small SOT23-5 package. It is ideal for industrial and general lighting applications.





- Hysteretic Control with High Side Current Sensing

- Integrated 40V 0.5Ω NDMOS

- >90% Efficiency

- Wide Input Voltage Range: 6V to 40V

- ±5% LED Current Accuracy

- Adjustable Constant LED Current

- Analog or PWM Control Signal for PWM Dimming

- Over Temperature, Open Circuit LED Protection

- Up to 1MHz Switching Frequency

- Pb-Free SOT23-5 Package



- Low Voltage Halogen Replacement LEDs

- Low Voltage Industrial Lighting

- LED Back-Side Lighting

- Illuminated Signs

- DC/DC or AC/DC LED Driver Application

- General Purpose,Constant Current Source

Part Number	Packaging Type	Marking Code	Shipping Qty
UM1361S	SOT23-5	EQX	3000pcs/7Inch Tape & Reel
