The UM3221E/UM3222E/UM3232E series are 3.3V powered RS-232 transceivers intended for portable or hand-held applications. The UM3221E has one driver/one receiver while the UM3222E/UM3232E has two drivers/two receivers. The device features low power consumption, high data-rate capability and enhanced ESD protection. The ESD rating of all transmitter outputs and receiver inputs is ±15kV for human body mode and ±15kV for IEC61000-4-2 air discharge methods, and over ±8kV for IEC61000-4-2 contact discharge methods. The logic I/O pins are protected to ±2kV for human body mode.

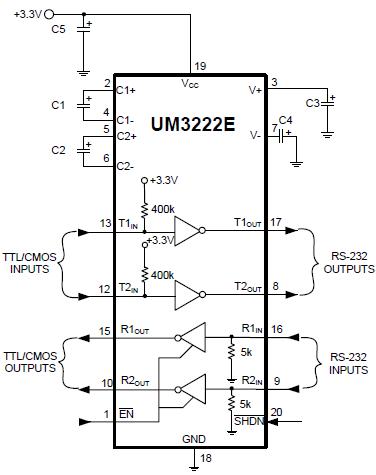

Small footprint, low profile package and the use of small 0.1μF capacitors ensure board space savings as well. Data rates greater than 250kbps are guaranteed at worst case load conditions.

The UM3221E/UM3222E has a low-power shutdown mode where the devices’ driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1μA that reduces power consumption in battery-powered portable systems or other low power consumption systems. The UM3221E/UM3222E receivers remain active in shutdown mode, allowing monitoring of external signals.



- Meets True EIA/TIA-232-F Standards from a +3.0V to +5.5V Power Supply

- Meets EIA/TIA-562 Levels of ±3.7V with Supply Voltages as Low as 2.7V

- Enhanced ESD Specifications:

  ±15kV Human Body Mode

  ±15kV IEC61000-4-2 Air Discharge Mode

  ±8kV IEC61000-4-2 Contact Discharge Mode

- 1μA Low Power Shutdown (UM3221E/UM3222E)

- 250kbps Minimum Transmission Rate

- Guaranteed 30V/μs Max Slew Rate

- Latch-Up Performance Exceeds 200mA





- Industrial Automation Equipments

- Battery-Powered Equipments

- Hand-Held Equipments

- POS Terminals

Part Number	Temp. Range	Package Type	Shipping Qty
UM3222EEUE	-40°C to +85°C	TSSOP20	3000pcs/13 Inch Tape & Reel
