Key Specifications

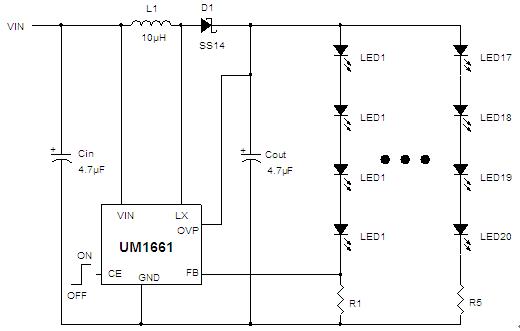

The UM1661 PFM step-up DC/DC Converter drives white LEDs with a constant current to provide backlight in cell phones, PDAs, and other hand-held devices. It features allowing series connection of the white LEDs so that the LED currents are identical for uniform brightness. An enable input can be pulsed repeatedly to adjust LEDs brightness. The fast 500kHz to 2MHz operation frequency allows for smaller capacitor and inductor. Fault condition protection uses cycle-by-cycle current limiting to sense maximum inductor current and over-voltage protection. The 0.2V low reference voltage minimizes the power loss across the current sense resistor.

The converter can operate from 2V to 6V, and capable of delivering maximum 200mA output current at 4-LEDs application with 3V input voltage. Quiescent current drawn from power source is as low as 120uA. All of these features make UM1661 be suitable for the portable devices, which are supplied by a single battery.



- Up to 24V Output Voltage

- Wide Operation Range: 2V to 6V

- Maximum 2MHz Operating Frequency

- PWM Dimming Control

- Current Limit Cycle-by-Cycle

- Low Current Sense Threshold: 200mV

- 24V Over Output Voltage Protection

- Compact SOT23-6 Package







- Compact Back Light Module

- Power Source for LED

- Constant Current Source



Part Number	Packaging Type	Marking Code	Shipping Qty
UM1661	SOT23-6	LE9	3000pcs/7Inch Tape & Reel

EV Board Users Guide

http://www.c964.cn/upload/UserGuide/UM1661%20EV%20Board%20Users%20Guide-01.pdf
